SLP74AHC574
OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS

    The SLP74AHC574 is an octal edge-triggered D-type flip-flop with 3-state outputs.

    The 8 flip-flops will store the state of their individual D-inputs that meet the set-up and hold times requirements on the LOW-to-HIGH CP transition. This device is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.


Main feature

  • Balanced propagation delays

  • CMOS input levels

  • ESD protection:

  • HBM: 2000V

  • CDM: 1000V

  • Latch-up performance: 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C

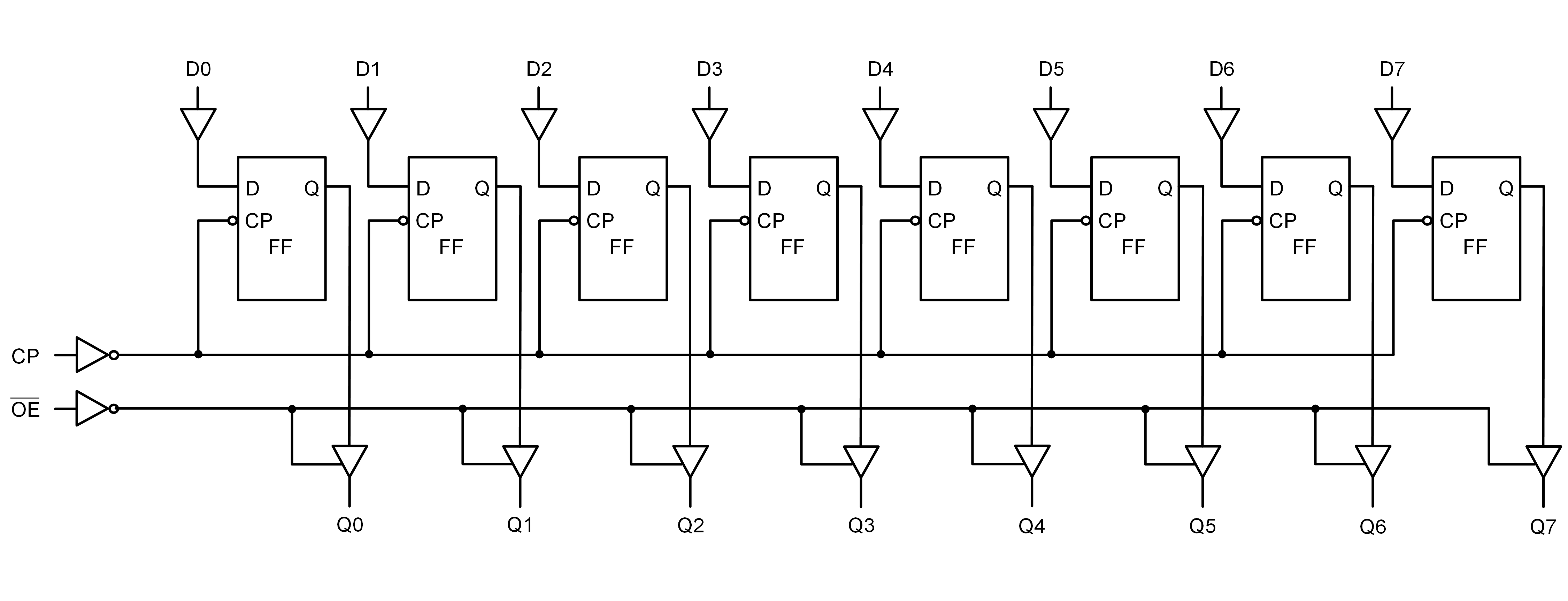

Block Diagram

SLP74AHC574 中英文同（4500&1725）.png
