SDM03LF60DA2
600V/3A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)

    SDM03LF60DA2 is a 3-phase brushless DC motor driver with high integration and high reliability for low power inverter driving applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3-phase full-bridge gate drivers with high voltage.

    The under voltage, short circuit and over temperature protections integrated make the circuit work safely in a wide range. The current of each phase can be detected separately because there is one independent negative DC terminal for each phase.

    SDM03LF60DA2 uses high-insulation design, compact package and carries heat easily, which makes it easy to use especially for compact installation applications.


Main feature

  • Built-in low-loss 600V/3A fast recovery MOSFET

  • Built-in high-voltage integrated circuit of gate driver

  • Built-in under voltage protection, over temperature protection, over current protection and temperature output

  • Built-in bootstrap diode with current limiting resistor

  • Compatible with 3.3V, 5V MCU interface, active high

  • Three independent negative DC terminal for inverter current detection

  • Alarm signal: for low-side under voltage, over temperature and short circuit protections

  • Insulation level: 2000Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM03LF60DA2 SDIP-26D SDM03LF60DA2 Halogen Free Tube

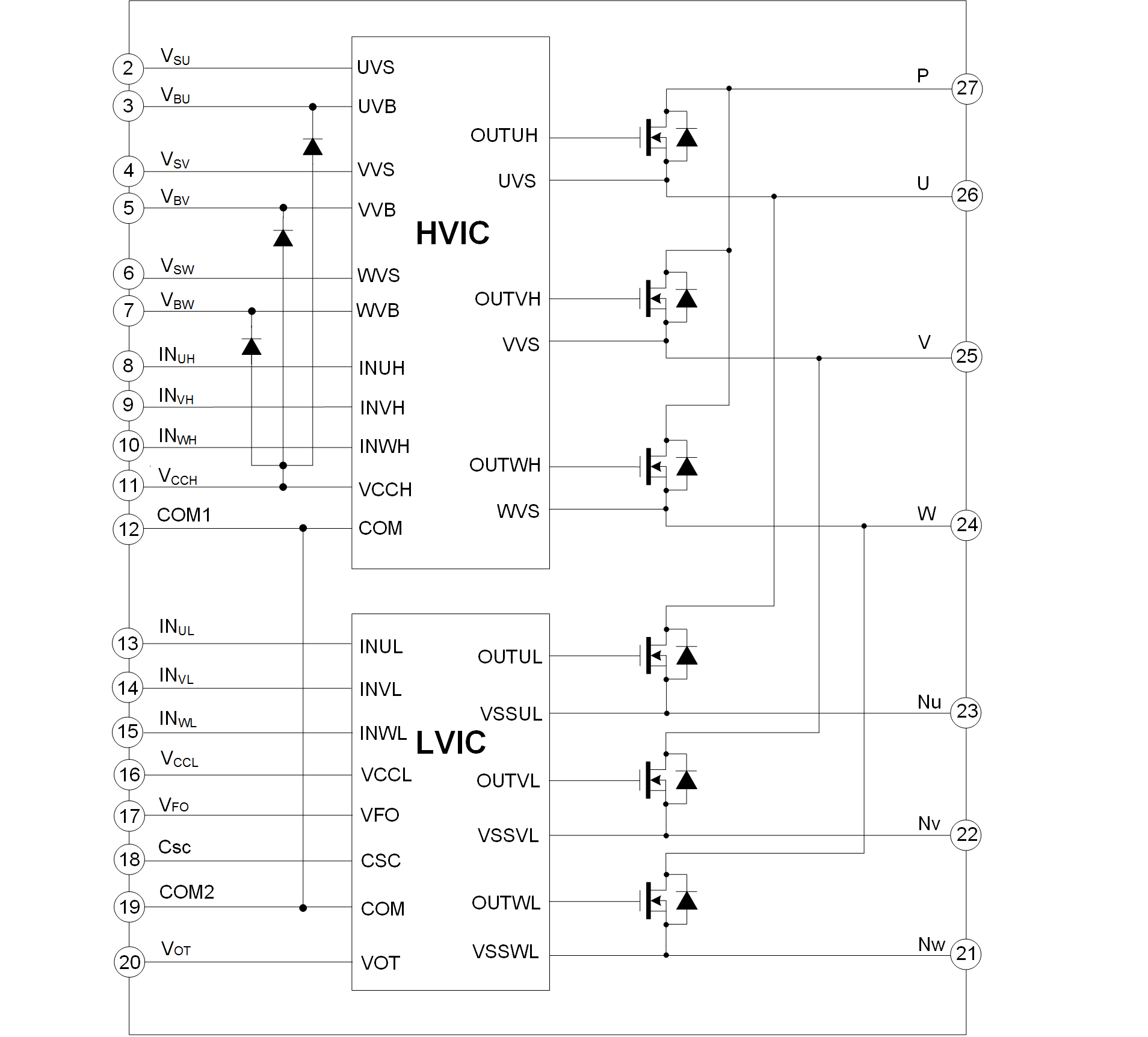

Block Diagram

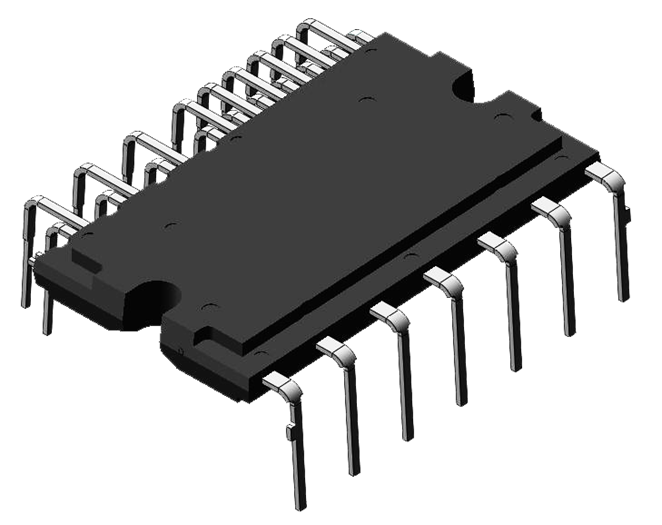

Packages
