SLP74LVTN16244B
3.3V 16-BIT BUFFER WITH 3-STATE OUTPUTS

The SLP74LVTN16244B is a 16-bit high performance bus buffer and line driver. The device is designed for 2.7V to 3.6V Vcc operation, but with the capability to provide TTL interface to a 5V system.

The device has four groups of 4-bit independent line drivers with 3-state outputs. When the input of nOE—. is high, the associated 4-bit output is in the high-impedance state.


Main feature

  • 16-bit bus buffer

  • Output capability: +64mA and -32mA

  • TTL input and output switching levels

  • Input and output interface capability to systems at 5V supply

  • Live insertion and extraction permitted

  • No bus current loading when output is tied to 5V bus

  • Power-up 3-state

  • ESD protection:

  • 2000-V Human-Body Model

  • 1000-V Charged-Device Model

  • Latch up performance: 100-mA

  • Specified from -40°C to +85°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

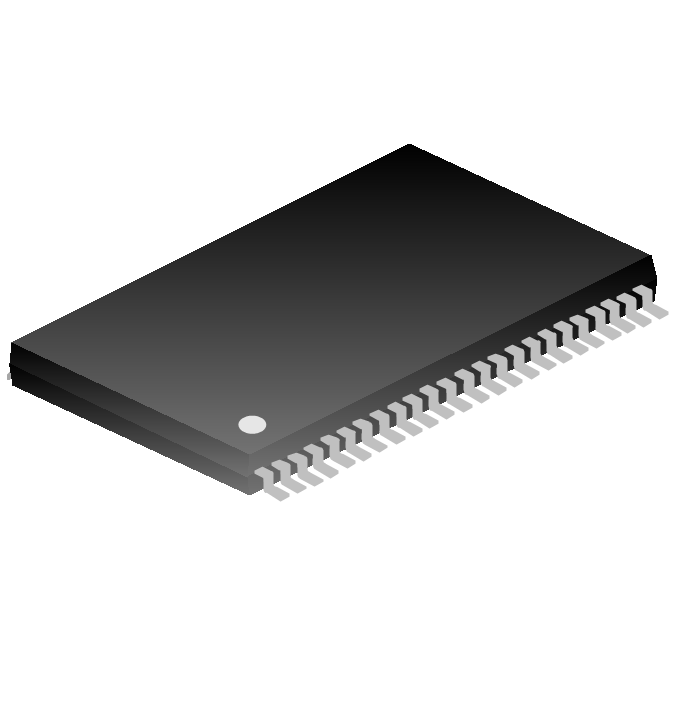

SLP74LVTN16244BJZ TSSOP-48-300-0.5 LVTN16244B Halogen free Tube
SLP74LVTN16244BJZTR TSSOP-48-300-0.5 LVTN16244B Halogen free Tape & Reel

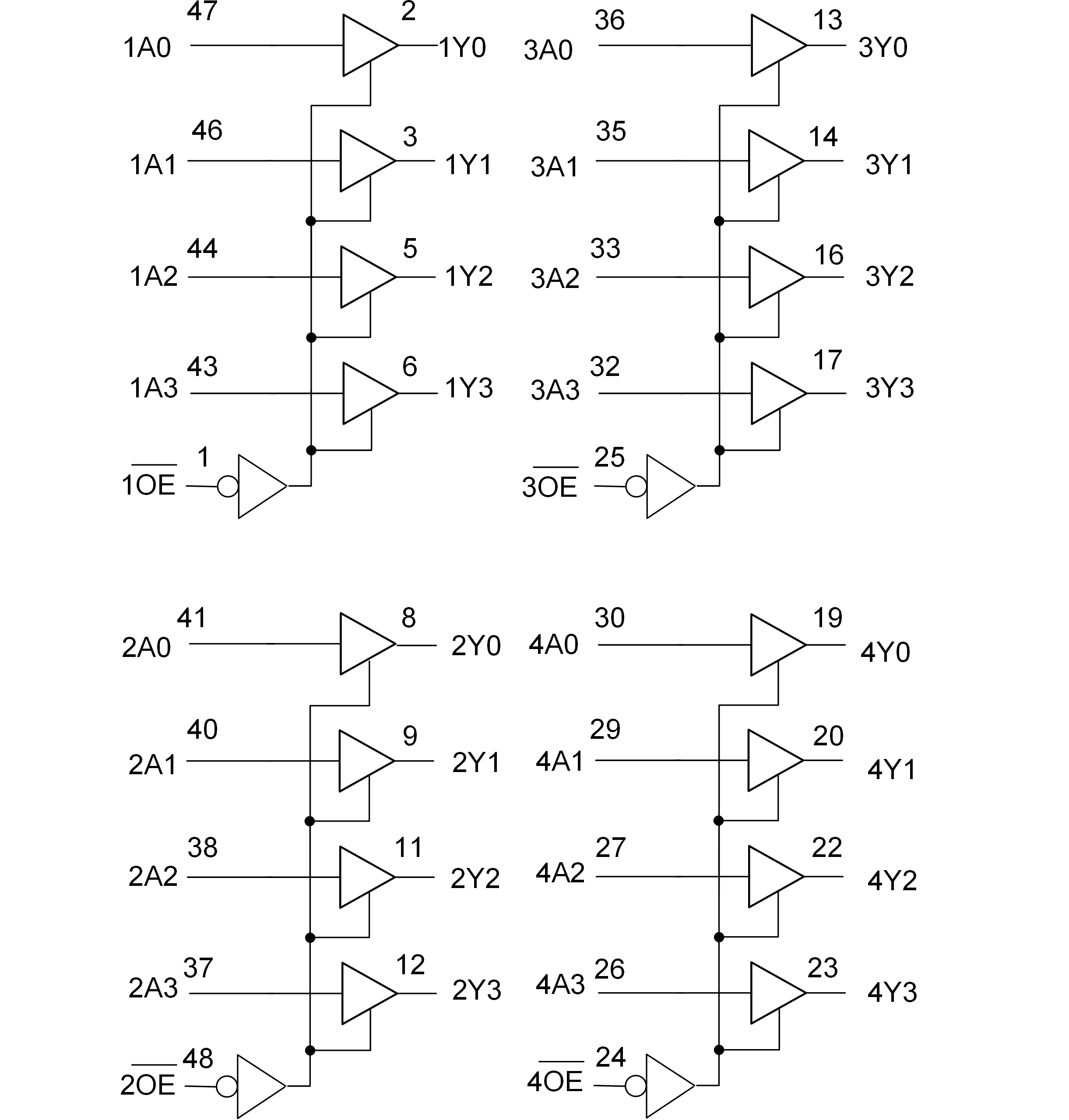

Block Diagram
