SLP74LVC1G17
SINGLE SCHMITT TRIGGER BUFFER

     The 74LVC1G17 provides a buffer function with Schmitt trigger input. It is capable of transforming slowly changing input signals into sharply defined outputs.

     The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment.

     This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.


Main feature

  • Supports 1.65V to 5.5V VCC operation

  • ±24mA output drive at VCC=3.0V

  • CMOS low power consumption

  • Direct interface with TTL levels

  • Input accept voltages up to 5V

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

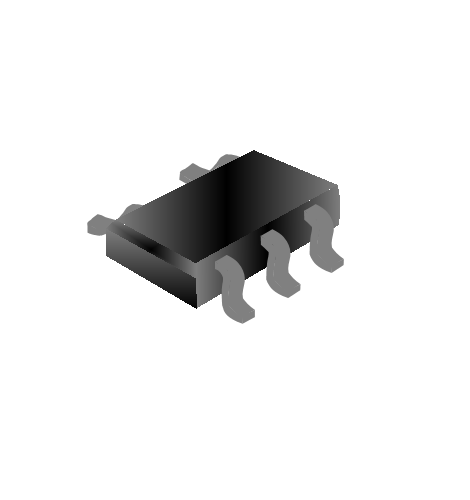

SLP74LVC1G17KMTR SOT-353-5L SP Halogen free Tape & Reel

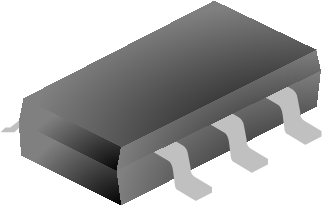

SLP74LVC1G17KBTR SOT-23-5L 1G17 Halogen free Tape & Reel

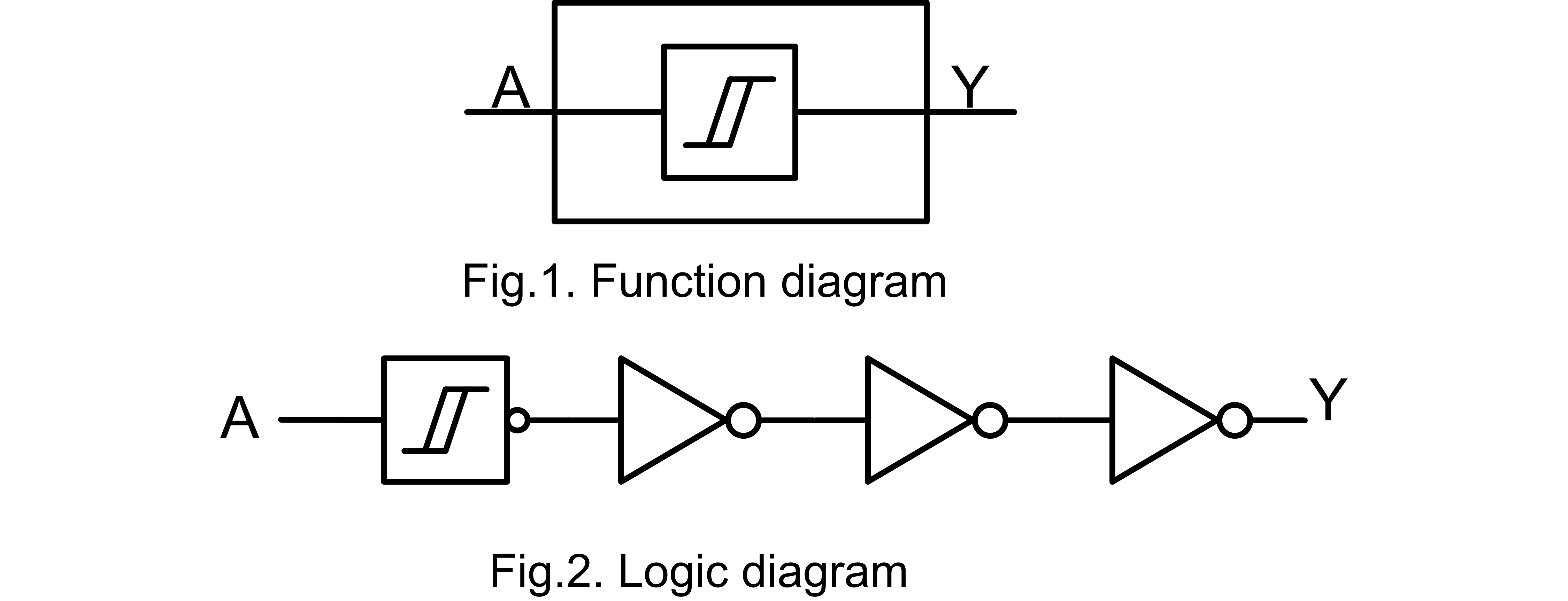

Block Diagram
