SLP74LVC2G17
DUAL SCHMITT-TRIGGER BUFFERS

    The SLP74LVC2G17 is a dual Schmitt-Trigger buffer designed for 1.65V to 5.5V VCC operation. The input of this device can be driven from either 3.3V or 5V devices. This input is a Schmitt trigger for tolerant of slower input rise and fall edge.

    The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.


Main feature

  • Supports from 1.65V to 5.5V operation

  • Input/output tolerant to 5V logic

  • -24mA output driver (VCC=3V)

  • Direct interface with TTL levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC2G17KCTR SOT-23-6L 2G17 Halogen free Tape & Reel
SLP74LVC2G17KETR SOT-363-6L SX Halogen free Tape & Reel

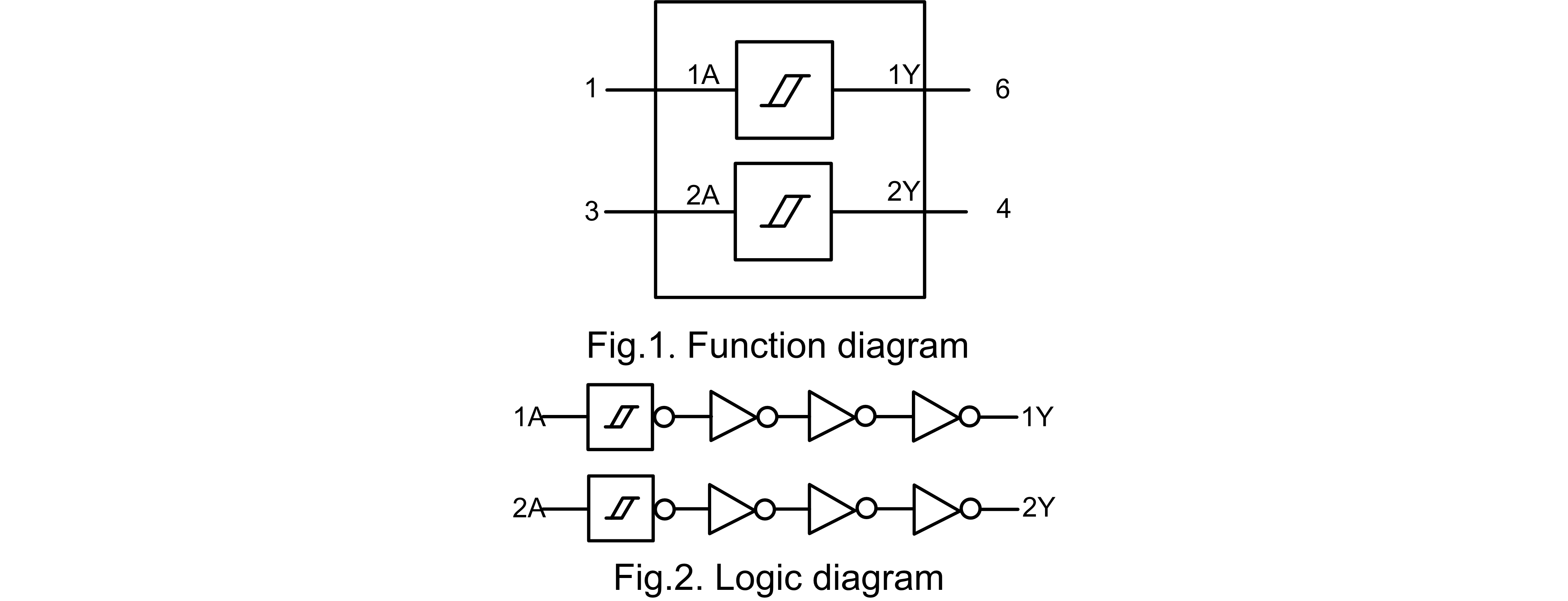

Block Diagram

SLP74LVC2G17 英文.png
