SLP74LVC244A
OCTAL BUFFER DRIVER WITH 3-STATE OUTPUTS

    The SLP74LVC244A is an octal non-inverting buffer/line driver .This device is designed for 1.2V to 3.6V VCC operation.

    The 3-state outputs are controlled by the output enable inputs 1OE(———and 2OE(———).WhenOE(———) ()is HIGH, the outputs go to the high impedance OFF-state.

    Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of this device as translators in mixed 3.3V and 5V applications.


Main feature

  • Inputs accept voltages to 5.5V

  • Operates from 1.2V to 3.6V

  • CMOS low power consumption

  • Direct interface with TTL levels

  • ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

  • Latch-up performance exceeds 250mA

  • Specified from-40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

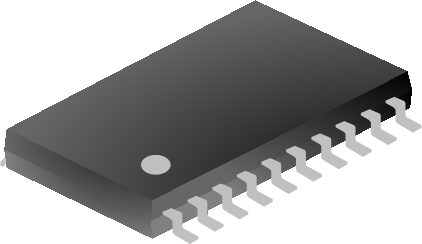

SLP74LVC244AEN SOP-20-375-1.27 74LVC244A Halogen free Tube
SLP74LVC244AENTR SOP-20-375-1.27 74LVC244A Halogen free Tape & Reel

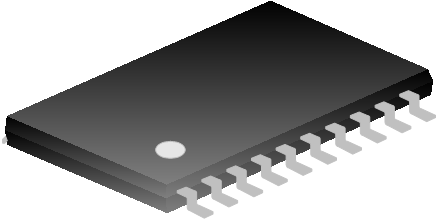

SLP74LVC244AJT TSSOP-20-225-0.65 LVC244A Halogen free Tube
SLP74LVC244AJTTR TSSOP-20-225-0.65 LVC244A Halogen free Tape & Reel

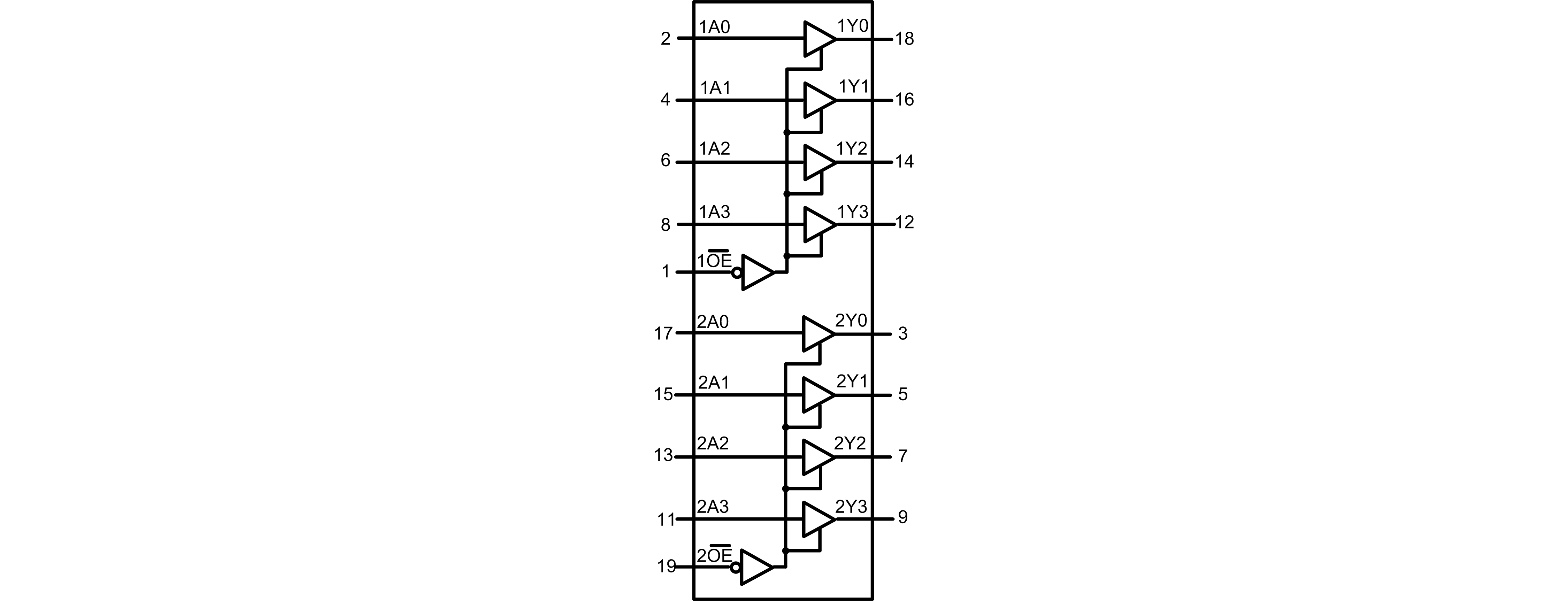

Block Diagram
