SA324
QUADRUPLE OPERATIONAL AMPLIFIERS

The SA324 consist of four independent, high-gain, frequency- compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 32V, and VCC is at least 1.5V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.

Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground. Low Input Bias and Offset Parameters.


Main feature

Wide Single?Supply Range: 3V~32V

Low Supply-Current Drain, 0.7mA Typ

Common-mode input voltage range includes ground

Low Input Bias and Offset Parameters

Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage 32V

Open-Loop Differential Voltage Amplification: 100V/mV

Internal Frequency Compensation


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SA324SB SOP-14-225-1.27 SA324SB Halogen free Tube
SA324SBTR SOP-14-225-1.27 SA324SB Halogen free Tape&Reel
SA324JY TSSOP-14-225-0.65 SA324JY Halogen free Tube
SA324JYTR TSSOP-14-225-0.65 SA324JY Halogen free Tape&Reel

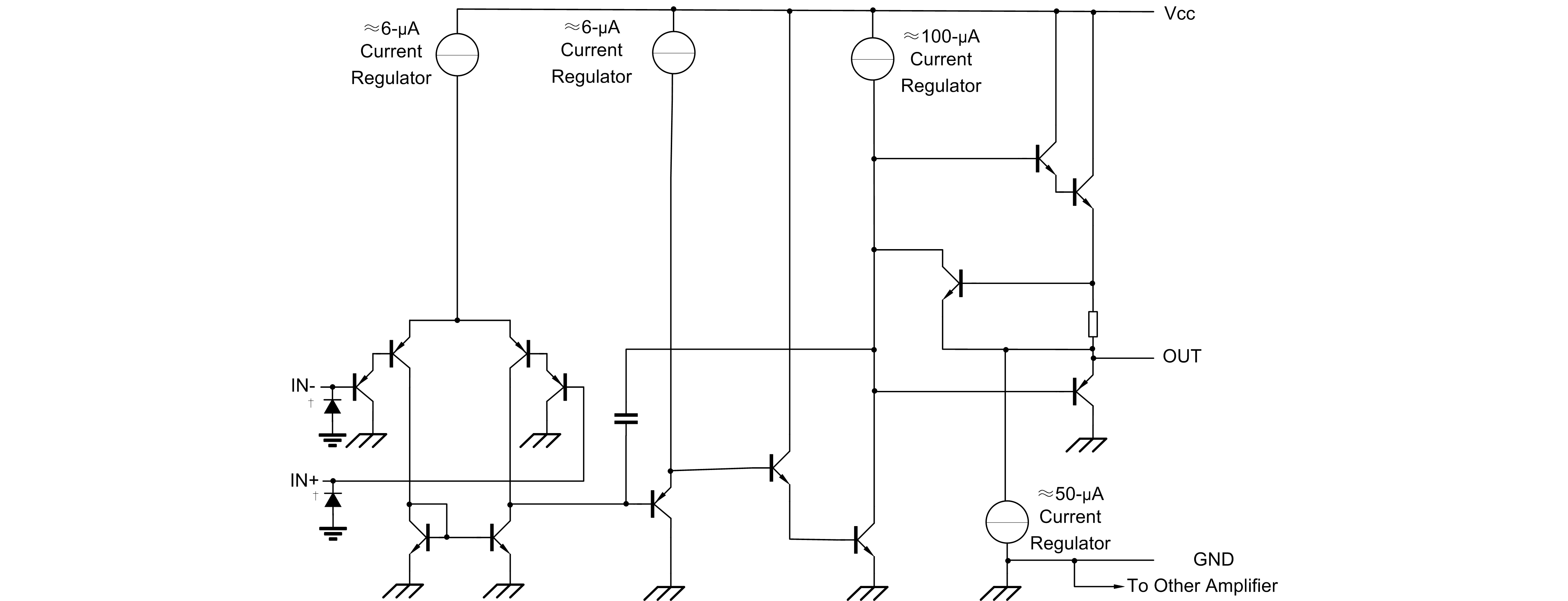

Block Diagram

SA324 英文.png
